WCMX 06T308M1A PR905 Grade PVD Carbide, Indexable Drilling Insert

WCMX 06T308M1A PR905 Grade PVD Carbide, Indexable Drilling Insert

SKU:
8850513
|
UPC:
C
$18.18
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
WCMX 06T308M1A PR905 Grade PVD Carbide, Right-Hand Drilling Insert for (K) Cast Iron (Holeshot Drill & Coremaster Coredrill)
Additional Information
Tool Style:
WCMX
Insert Size:
06T308
Chipbreaker:
M1A
Insert Grade:
PR905
Material:
Carbide
Coating Process:
PVD

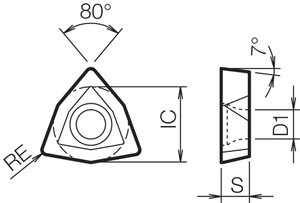

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.97
[RE] Corner Radius (mm):
0.80
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
80
Primary Workpiece Material:
(K) Cast Iron
Insert Shape:
80 Degree Trigon
Number of Cutting Edges:
3
Insert Holding Method:
Screw
Feature 1:
Insert for drilling and coredrilling
Feature 2:
Smooth fine surface PVD coated hard carbide with plastic deformation resistance
Feature 3:
Application: Suitable for turning of gray and nodular cast iron
ANSI Part Number:
WCMX06T308M1APR905
ISO Part Number:
WCMX06T308M1A
US Stock:
510
Worldwide Stock:
0
Old Material Number:
8850513
Compatible Toolholder (Partial):
DR-1181... ~ DR-4000…, CD-1115... ~ CD-3000…
[IC] Inscribed Circle:
3/8"
[S] Thickness:
5/32"
[RE] Corner Radius:
1/32"
Series Description (PeopleSoft):
OTM Drilling Inserts
Series Description:
OTM Drilling Inserts
