WNGA 432S00730MET KBN010 Grade CBN, Indexable Turning Insert

SKU:
TFD00123
$120.37
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
WNGA 432S00730MET KBN010 Grade CBN, 80 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous Machining of (H) Hardened Materials
Tool Style:
WNGA
Insert Size:
432
Insert Grade:
KBN010
Material:
CBN
Coating Process:
PVD

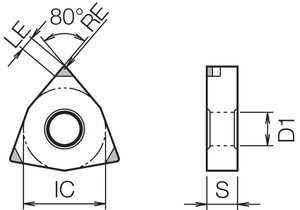

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
[LE] CBN/PCD Tip Length (Decimal Inch):
0.1024
[LE] CBN/PCD Tip Length (mm):
2.60
Application:
Boring|External Turning|Facing|Internal Facing
Hand:
Neutral
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
80
Primary Workpiece Material:
(H) Hardened Materials
Insert Shape:
80 Degree Trigon
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
ANSI Part Number:
WNGA432S00730METKBN010
ISO Part Number:
WNGA080408S01730MET
Compatible Toolholder (Partial):
DWLNR...-4...|DWLNL...-4...|DWLNR...-08|DWLNL...-08|MWLNR...-4…|MWLNL...-4…|PWLNR...-08|PWLNL...-08|WWLNR...-08|WWLNL...-08|...-DWLNR4|...-DWLNL4|...-DWLNR08-...|...-DWLNL08-...|...-PWLNR08-...|...-PWLNL08-...|...-WWLNR08-...|...-WWLNL08-...
