WNMG 331HQ PV90 Grade PVD Cermet, Indexable Turning Insert
$12.11
(No reviews yet)
Write a Review
WNMG 331HQ PV90 Grade PVD Cermet, Indexable Turning Insert
WNMG 331HQ PV90 Grade PVD Cermet, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel, (M) Stainless Steel
- Tool Style:
- WNMG
- Insert Size:
- 331
- Chipbreaker:
- HQ
- Insert Grade:
- PV90
- Material:
- Cermet
- Coating Process:
- PVD

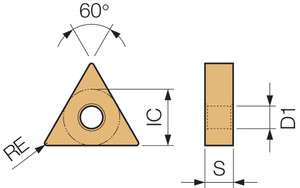

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Boring|External Turning|Facing|Internal Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 80
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel|(M) Stainless Steel
- Insert Shape:
- 80 Degree Trigon
- Number of Cutting Edges:
- 6
- Usage Classification:
- Light Interruption
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Boring, Internal Facing
- Feature 2:
- 6 Cutting Edges
- Feature 3:
- Tougher than conventional cermet
- Feature 4:
- Reliable and stable machining with coolant
- Feature 5:
- Application: For roughing to finishing of steels
- ANSI Part Number:
- WNMG331HQPV90
- ISO Part Number:
- WNMG060404HQ
- US Stock:
- 10
- Worldwide Stock:
- 0
- Old Material Number:
- 8804337
- Compatible Toolholder (Partial):
- DWLNR…-3..., DWLNL…-3..., PWLNR...-3..., PWLNL...-3..., PWLNR...-06, PWLNL...-06, ...-PWLNR06-..., ...-PWLNL06-...
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/64"
