WNMG 431MU PR015S Grade PVD Carbide, Indexable Turning Insert
$14.51
(No reviews yet)
Write a Review
WNMG 431MU PR015S Grade PVD Carbide, Indexable Turning Insert
WNMG 431MU PR015S Grade PVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy
- Tool Style:
- WNMG
- Insert Size:
- 431
- Chipbreaker:
- MU
- Insert Grade:
- PR015S
- Material:
- Carbide
- Coating Process:
- PVD

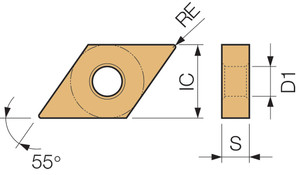

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Boring|External Turning|Facing|Internal Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 80
- Primary Workpiece Material:
- (S) Heat-Resistant Alloy
- Insert Shape:
- 80 Degree Trigon
- Number of Cutting Edges:
- 6
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Boring, Internal Facing
- Feature 2:
- Stainless Steel / HRSA with 6 Cutting Edges
- Feature 3:
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Feature 4:
- Resists heat concentration at the cutting edge to promote stable machining
- Feature 5:
- Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys
- ANSI Part Number:
- WNMG431MUPR015S
- ISO Part Number:
- WNMG080404MU
- US Stock:
- 0
- Worldwide Stock:
- 40
- Old Material Number:
- 8858381
- Compatible Toolholder (Partial):
- DWLNR...-4...|DWLNL...-4...|DWLNR...-08|DWLNL...-08|MWLNR...-4…|MWLNL...-4…|PWLNR...-08|PWLNL...-08|WWLNR...-08|WWLNL...-08|...-DWLNR4|...-DWLNL4|...-DWLNR08 -...|...-DWLNL08 -...|...-PWLNR08 -...|...-PWLNL08 -...|...-WWLNR08 -...|...-WWLNL08 -...
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/64"
