WNMG 431WQ PV90 Grade PVD Cermet, Indexable Turning Insert

WNMG 431WQ PV90 Grade PVD Cermet, Indexable Turning Insert

SKU:
TKZ04268
$14.19
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
WNMG 431WQ PV90 Grade PVD Cermet, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel, (M) Stainless Steel
Additional Information
Tool Style:
WNMG
Insert Size:
431
Chipbreaker:
WQ
Insert Grade:
PV90
Material:
Cermet
Coating Process:
PVD

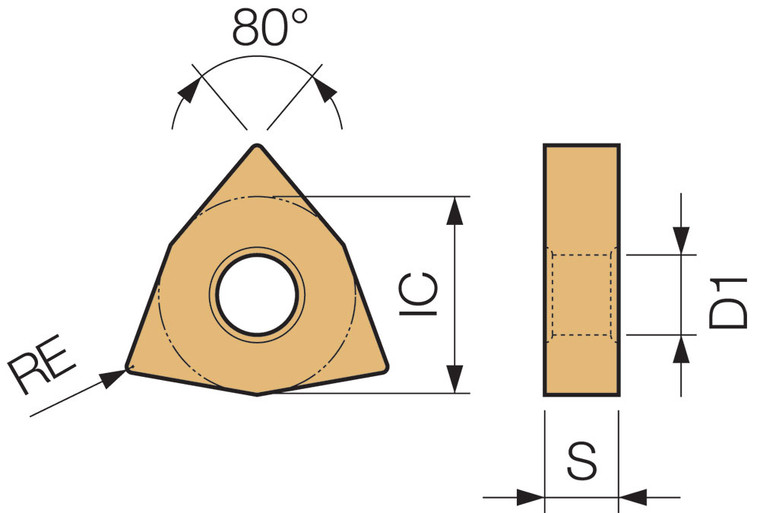

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
[RE] Corner Radius:
1/64"
[RE] Corner Radius (mm):
0.40
Application:
Boring|External Turning|Facing|Internal Facing
Hand:
Neutral
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
80
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(M) Stainless Steel
Insert Shape:
80 Degree Trigon
Number of Cutting Edges:
6
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
Feature 1:
Insert for External Turning, Facing, Boring, Internal Facing
Feature 2:
Wiper Edge with 6 Cutting Edges
Feature 3:
Tougher than conventional cermet
Feature 4:
Reliable and stable machining with coolant
Feature 5:
Application: For roughing to finishing of steels
ANSI Part Number:
WNMG431WQPV90
ISO Part Number:
WNMG080404WQ
Old Material Number:
8808224
Compatible Toolholder (Partial):
DWLNR...-4...|DWLNL...-4...|DWLNR...-08|DWLNL...-08|MWLNR...-4…|MWLNL...-4…|PWLNR...-08|PWLNL...-08|WWLNR...-08|WWLNL...-08|...-DWLNR4|...-DWLNL4|...-DWLNR08 -...|...-DWLNL08 -...|...-PWLNR08 -...|...-PWLNL08 -...|...-WWLNR08 -...|...-WWLNL08 -...
