ZCMT 050203SU PR1225 Grade PVD Carbide, Indexable Drilling Insert

ZCMT 050203SU PR1225 Grade PVD Carbide, Indexable Drilling Insert

SKU:
TKB09479
|
UPC:
4960664620562
$19.36
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
ZCMT 050203SU PR1225 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel and (P) Carbon/Alloy Steel (DRZ Magic Drill)
Additional Information
Tool Style:
ZCMT
Insert Size:
050203
Chipbreaker:
SU
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

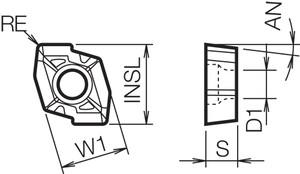

[S] Thickness (mm):
2.38
[RE] Corner Radius (mm):
0.30
[INSL] Insert Length (mm):
5.90
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
n/a
Primary Workpiece Material:
(M) Stainless Steel
Insert Shape:
Irregular
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Insert for drilling
Feature 2:
Same insert for inboard and outboard pockets
Feature 3:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 4:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
ZCMT050203SUPR1225
ISO Part Number:
ZCMT050203SU
US Stock:
0
Worldwide Stock:
40
Old Material Number:
8832321
Compatible Toolholder (Partial):
S…-DRZ…-05…
[S] Thickness:
3/32"
[RE] Corner Radius:
0.012"
[INSL] Insert Length (Decimal Inch):
0.2323
