ZCMT 080304SP KW10 Grade Uncoated Carbide, Indexable Drilling Insert

ZCMT 080304SP KW10 Grade Uncoated Carbide, Indexable Drilling Insert

SKU:
TWE05050
|
UPC:
4960664188444
$16.61
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
ZCMT 080304SP KW10 Grade Uncoated Carbide, Right-Hand Drilling Insert for (N) Non-Ferrous Metals (DRZ Magic Drill)
Additional Information
Tool Style:
ZCMT
Insert Size:
080304
Chipbreaker:
SP
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated

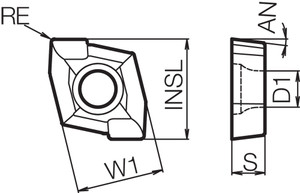

[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.40
[INSL] Insert Length (mm):
9.70
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
n/a
Primary Workpiece Material:
(N) Non-Ferrous Materials
Insert Shape:
Irregular
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Insert for drilling
Feature 2:
Same insert for inboard and outboard pockets
Feature 3:
ISO identification symbol K carbide (K10 relevant)
Feature 4:
Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
ANSI Part Number:
ZCMT080304SPKW10
ISO Part Number:
ZCMT080304SP
US Stock:
100
Worldwide Stock:
30
Old Material Number:
8805933
Compatible Toolholder (Partial):
S…-DRZ…-08…
[S] Thickness:
1/8"
[RE] Corner Radius:
1/64"
[INSL] Insert Length (Decimal Inch):
0.3819
