ZCMT 080304SP PR1230 Grade PVD Carbide, Indexable Drilling Insert
$21.29
(No reviews yet)
Write a Review
ZCMT 080304SP PR1230 Grade PVD Carbide, Indexable Drilling Insert
ZCMT 080304SP PR1230 Grade PVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel and (M) Stainless Steel (DRZ Magic Drill)
- Tool Style:
- ZCMT
- Insert Size:
- 080304
- Chipbreaker:
- SP
- Insert Grade:
- PR1230
- Material:
- Carbide
- Coating Process:
- PVD

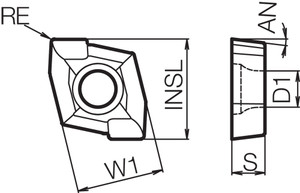

- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.40
- [INSL] Insert Length (mm):
- 9.70
- Application:
- Drilling
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- n/a
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel|(P) Tool Steel
- Insert Shape:
- Irregular
- Number of Cutting Edges:
- 4
- Insert Holding Method:
- Screw
- Feature 1:
- Insert for drilling
- Feature 2:
- Same insert for inboard and outboard pockets
- Feature 3:
- Superior wear and oxidation resistant MEGACOAT on a special tough carbide substrate
- Feature 4:
- Application: Stable and high feed rate milling and drilling of steel
- ANSI Part Number:
- ZCMT080304SPPR1230
- ISO Part Number:
- ZCMT080304SP
- US Stock:
- 420
- Worldwide Stock:
- 880
- Old Material Number:
- 8832332
- Compatible Toolholder (Partial):
- S…-DRZ…-08…
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 1/64"
- [INSL] Insert Length (Decimal Inch):
- 0.3819
