ZCMT 150406SP PR1230 Grade PVD Carbide, Indexable Drilling Insert

SKU:
TKC09488
|
UPC:
4960664620906
$28.39
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
ZCMT 150406SP PR1230 Grade PVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel and (M) Stainless Steel (DRZ Magic Drill)
Tool Style:
ZCMT
Insert Size:
150406
Chipbreaker:
SP
Insert Grade:
PR1230
Material:
Carbide
Coating Process:
PVD

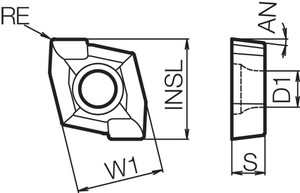

[S] Thickness (mm):
4.76
[RE] Corner Radius (mm):
0.60
[INSL] Insert Length (mm):
17.80
Application:
Drilling
Hand:
Right-Hand
Rake:
Positive
[EPSR] Insert Included Angle (Degree):
n/a
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Tool Steel
Insert Shape:
Irregular
Number of Cutting Edges:
4
Insert Holding Method:
Screw
Feature 1:
Insert for drilling
Feature 2:
Same insert for inboard and outboard pockets
Feature 3:
Superior wear and oxidation resistant MEGACOAT on a special tough carbide substrate
Feature 4:
Application: Stable and high feed rate milling and drilling of steel
ANSI Part Number:
ZCMT150406SPPR1230
ISO Part Number:
ZCMT150406SP
US Stock:
410
Worldwide Stock:
30
Old Material Number:
8832344
Compatible Toolholder (Partial):
S…-DRZ…-15G
[S] Thickness:
3/16"
[RE] Corner Radius:
0.024"
[INSL] Insert Length (Decimal Inch):
0.7008
